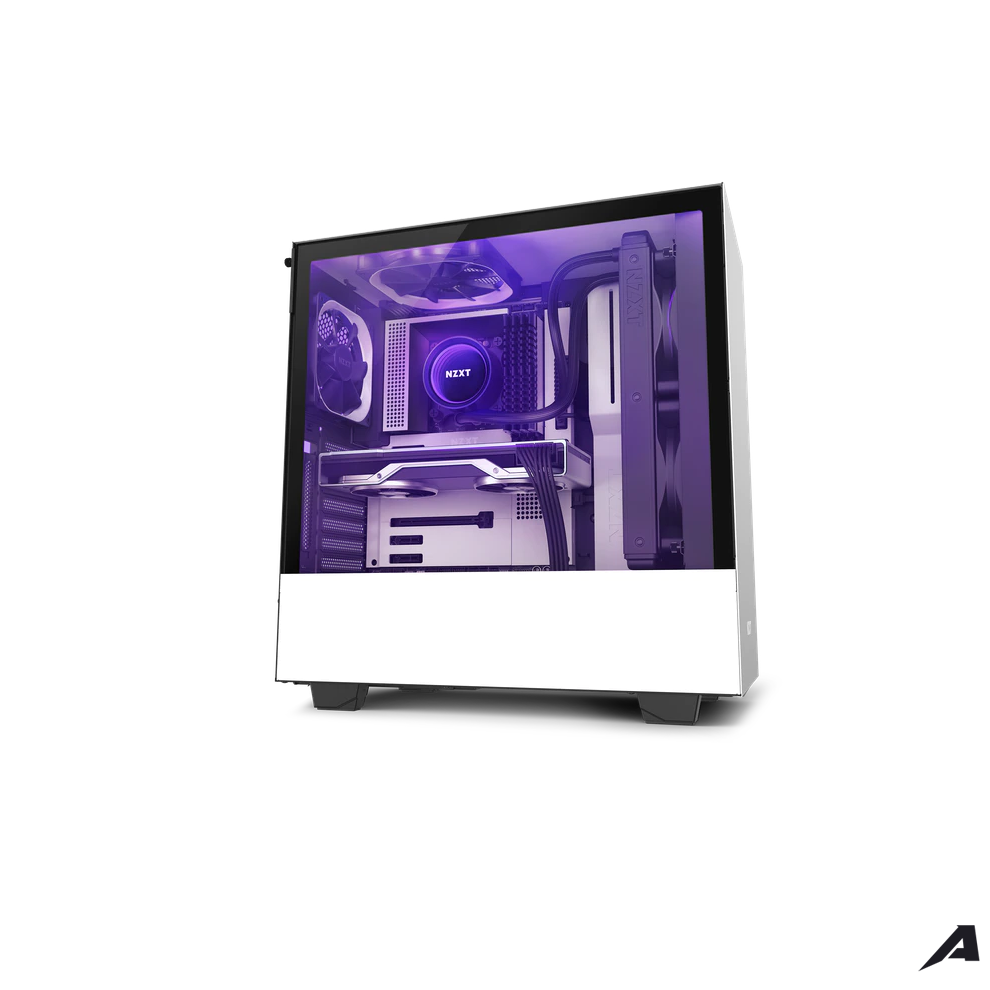

NZXT H510I MID TOWER CASE - MATTE WHITE

Tech Specs

Key Specs

Motherboard Support

Mini-ITX, MicroATX, ATX

Enclosure Type

Compact Mid-Tower

Case Material

SGCC Steel, Tempered Glass

Dimensions

Height

460mm / 18.11 inches

Width

210mm / 8.27 inches

Depth

428mm / 16.85 inches

Weight

6.8 kg / 15lbs

Compatibility & Clearance

Max CPU Cooler Clearance

165mm

Max GPU Clearance

321 - 381mm

Front Fan & Radiator Clearance

60mm

Vertical GPU Clearance

50.8mm

Cable Management

19 - 23mm

Front I/O Ports

USB 3.2 Gen 2 Type-A

1

USB 3.2 Gen 1 Type-C

1

Headset Audio Jack

1

Smart Device

Fan Channels

3 (10W max per channel)

NZXT RGB Connector

2 (Support up to 40 LEDs)

Expansion Slots

Standard

7

Vertical

2

Drive Bays

2.5"

2 + 1

3.5"

2 + 1

Fan Support

Front

2 x 120mm / 2 x 140mm

Top

1 x 120mm / 1 x 140mm

Rear

1 x 120mm

Filters

All air intakes

Radiator Support

Front

280mm

Top

-

Rear

120mm

Fan Specs

Model

Aer P 120mm (Case Version)

Speed

1,200 ± 200RPM

Airflow

50.42 CFM

Noise

28 dBA

Fan Connector

3-pin

General

Model Number

CA-H510i-W1

UPC

815671014726

EAN

5060301695027
