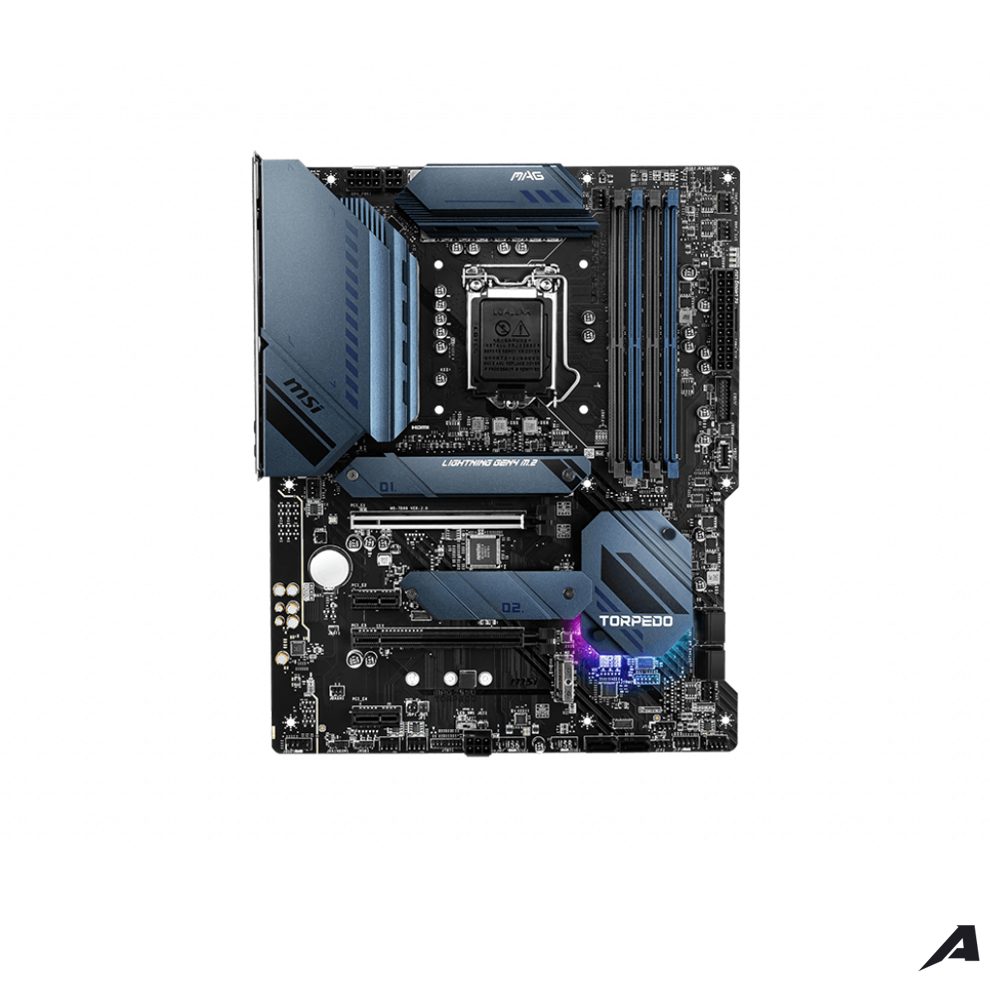

MSI Z590 TORPEDO MOTHERBOARD

PROCESSOR

Supports 10th Gen Intel® Core™, 11th Gen Intel® Core™, Pentium® Gold and Celeron® processors 1

Processor socket LGA1200

Please go to intel.com for compatibility information.

See supported processors

CHIPSET

Intel® Z590 Chipset

MEMORY

4x DDR4 memory slots, support up to 128GB 1

Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel® CPU (by JEDEC & POR)

Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel® CPU (by JEDEC & POR)

Max overclocking frequency:

1DPC 1R Max speed up to 5333 MHz

1DPC 2R Max speed up to 4700+ MHz

2DPC 1R Max speed up to 4400+ MHz

2DPC 2R Max speed up to 4000+ MHz

Supports Dual-Channel mode

Supports non-ECC, un-buffered memory

Supports Intel® Extreme Memory Profile (XMP)

Please refer to www.msi.com for more information on compatible memory.

See supported memory

EXPANSION SLOT

2x PCIe x16 slots

1x PCIe 3.0 x16 slot (from CPU)

Support up to PCIe 4.0 for 11th Gen Intel® CPU

Support up to PCIe 3.0 for 10th Gen Intel® CPU

PCI_E3 (From Z590 chipset)

Support up to PCIe 3.0 x4

2x PCIe 3.0 x1 slots (From Z590 chipset)

MULTI-GPU

Supports 2-Way AMD® CrossFire™ Technology

ONBOARD GRAPHICS

1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz 1 / 2

1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz 1 / 2

Available only on processors featuring integrated graphics.Graphics specifications may vary depending on the CPU installed.

STORAGE

6x SATA 6Gb/s ports (From Z590 chipset) 1

3x M.2 slots (Key M)

M2_1 slot (From CPU)

Available only on 11th Gen Intel® CPU

Supports up to PCIe 4.0 x4

Supports 2242/ 2260/ 2280/ 22110 storage devices

M2_21 & M2_3 2 slot (From Z590 chipset)

Supports up to PCIe 3.0 x4

Supports SATA up to 6Gb/s

Supports 2242/ 2260/ 2280 storage devices

Intel® Optane™ Memory Ready 3

Supports Intel® Smart Response Technology for Intel Core™ processors

SATA2 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.SATA5 & SATA6 will be unavailable when installing M.2 SSD in the M2_3 slot.Before using Intel® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.

RAID

Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

Supports RAID 0 and RAID 1 for M.2 PCIe storage devices

USB

Intel® Z590 Chipset

1x USB3.2 Gen2x2 20Gbps Type-C port on the back panel

2x USB 3.2 Gen 2 10Gbps ports (1 Type-C internal connector and 1 Type-A port on the back panel)

6x USB 3.2 Gen 1 5Gbps ports (4 Type-A ports on the back panel, 2 ports through the internal connector)

1x USB 2.0 Type-A port on the back panel

Hub-GL850G

5x USB 2.0 ports (1 Type-A port on the back panel, 4 Type-A ports available through internal connectors)

AUDIO

Realtek® ALC4080 Codec

7.1-Channel High Definition Audio

Supports S/PDIF output

LAN

1x Intel® I225-V 2.5Gbps LAN controller

1x Intel® I219-V 1Gbps LAN controller

INTERNAL CONNECTORS

1x 24-pin ATX main power connector

1x 8-pin ATX 12V power connector

1x 4-pin ATX 12V power connector

1x 6-pin PCIE power connector

6x SATA 6Gb/s connectors

3x M.2 slots (M-Key)

1x USB 3.2 Gen 2 10Gbps Type-C port

1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)

2x USB 2.0 Type-A connectors (supports additional 4 USB 2.0 ports)

1x 4-pin CPU fan connector

1x 4-pin water-pump fan connector

6x 4-pin system fan connectors

1x Front panel audio connector

2x System panel connectors

1x Chassis Intrusion connector

1x TPM module connector

1x Clear CMOS jumper

1x TBT connector (supports RTD3)

1x Tuning Controller connector

LED FEATURE

1x EZ LED Control switch

2x 4-pin RGB LED connectors

2x 3-pin RAINBOW LED connectors

4x EZ Debug LED

BACK PANEL PORTS

DisplayPort

USB 2.0

Gigabit LAN Port

2.5G LAN Port

HD Audio Connectors

HDMI

Flash BIOS Button

USB 3.2 Gen 1 5Gbps Type-A

USB 3.2 Gen 1 5Gbps Type-A

USB 3.2 Gen 2 10Gbps Type-A

USB 3.2 Gen 2x2 20Gbps Type-C

Optical S/PDIF OUT
