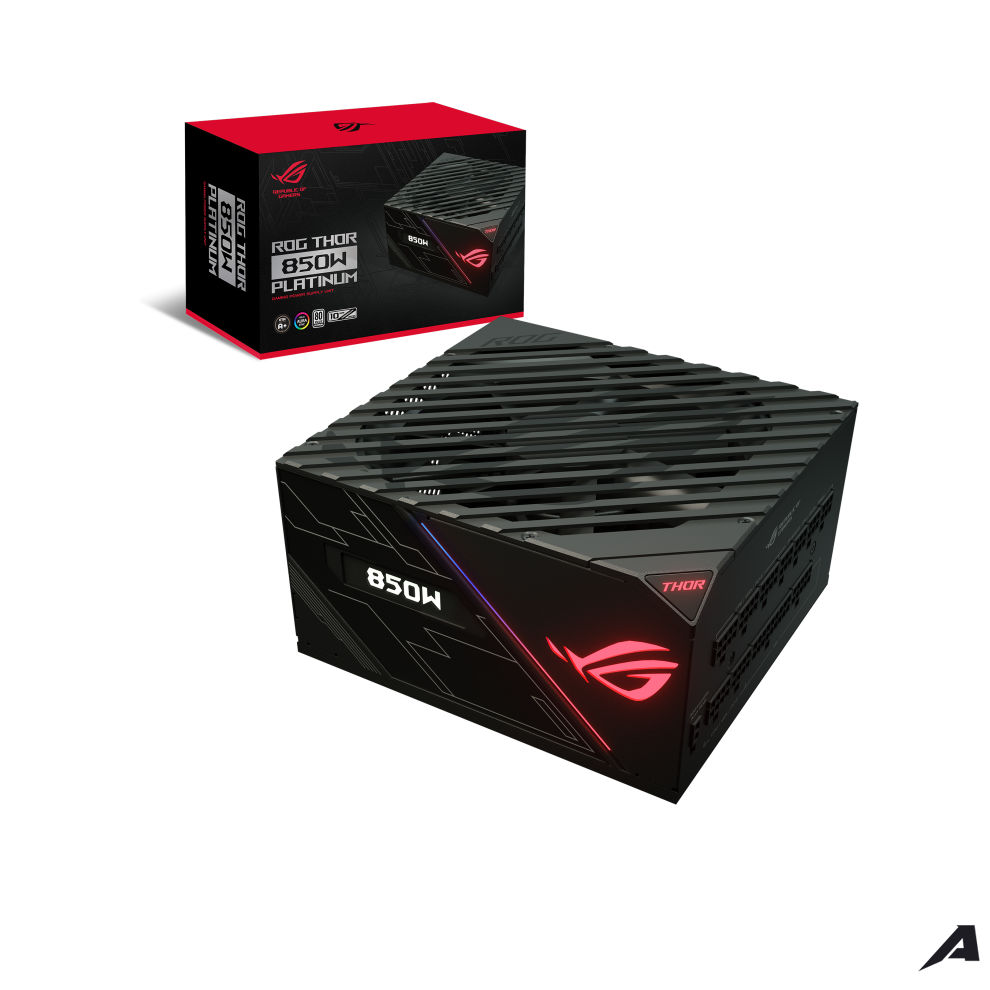

ROG-THOR-850P
Intel Specification
ATX12V
Dimensions
16 x 15 x 8.6 Centimeter
Efficiency
80Plus Platinum (At 20%/50%/100% load AC 115V 60Hz and AC 230V 50Hz, the power efficiency is 90%/92%/89%.)
Protection Features
OPP/OVP/UVP/SCP/OCP/OTP
Hazardous Materials
ROHS
AC Input Range
100-240Vac
RGB Connector
Aura Sync
DC Output Voltage
+3.3V +5V +12V -12V +5Vsb
Maximum Load
20A 20A 71A 0.3A 3A
Total Output
850W
Connectors
MB 24/20-pin*1
CPU 8/4-pin*2
PCIE 8/6-pin*4
SATA *12
Peripheral 4-pin*5
Floppy*1
Package Contents
Power Cord x 1
Motherboard Power Cable (24-pin) x 1
CPU Cable (4+4-pin) x 2
PCI-E Cable (6+2-pin) x 3
SATA Cable x 3
Peripheral x 2
SATA to Peripheral Cable x 1
Addressable RGB Cables x 2
ROG Sticker x 1
ROG Cable Tie x 4
Sleeved Cable Combs (6-pin) x 2
Sleeved Cable Combs (8-pin) x 6
Sleeved Cable Combs (24-pin) x 2
Chassis Screws Package x 1
Cable Tie x 10
User Manual x 1
